Understanding P2P File Distribution and the BitTorrent Protocol

15 Aug, 2025

Most of the applications we use daily (web, email, DNS, etc.) adopt a client-server architecture that heavily relies on always-on infrastructure servers. However, P2P (Peer-to-Peer) architecture takes an entirely different approach. In this post, we will mathematically analyze the principles of P2P file distribution and take a detailed look at how BitTorrent – the most successful P2P protocol – operates.

Basic Concepts of P2P Architecture

In a P2P architecture, there is minimal or no reliance on always-on infrastructure servers. Instead, the application enables pairs of intermittently connected hosts called peers to communicate directly with each other.

Peers are not owned by service providers but are desktops, laptops, smartphones, and other devices controlled by users. Most peers are located in homes, universities, and offices. Since peers communicate directly without going through a specific server, this architecture is called Peer-to-Peer (P2P).

Key Characteristics of P2P Architecture

The most notable characteristic of P2P architecture is self-scalability. In a P2P file-sharing application, each peer generates workload by requesting files, but at the same time, each peer adds service capacity to the system by distributing files to other peers.

This characteristic makes P2P architecture very cost-effective. It generally does not require substantial server infrastructure or server bandwidth (in contrast to client-server designs in data centers). However, P2P applications face challenges in security, performance, and reliability due to their highly distributed nature.

P2P vs Client-Server: File Distribution Performance Comparison

Let us now mathematically analyze the time it takes to distribute a file to a fixed number of peers in both client-server and P2P architectures. This will clearly demonstrate the self-scalability inherent to P2P.

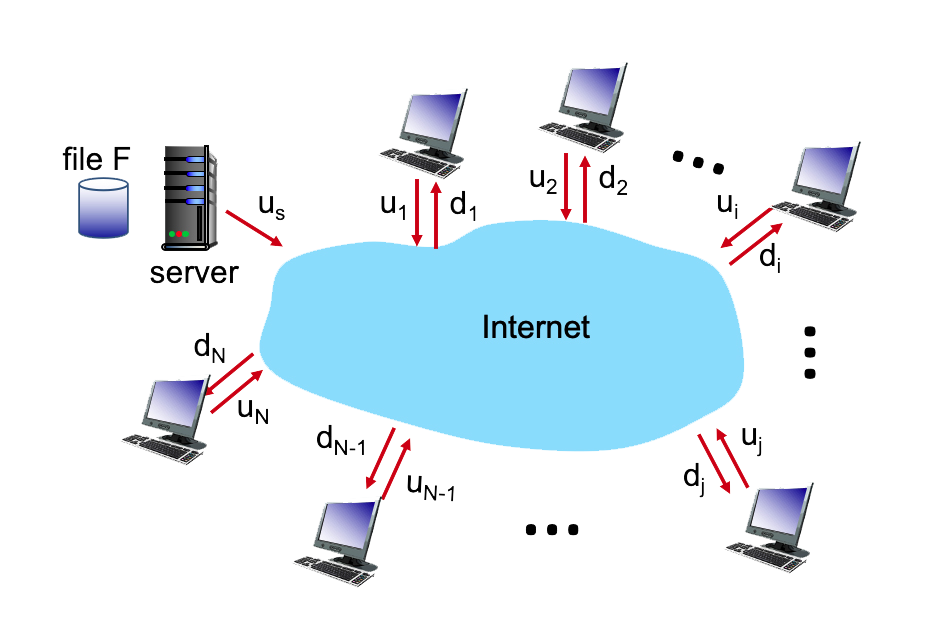

Model Setup

We use the following notation:

$u_s$: Server upload rate
$u_i$: Upload rate of the $i$-th peer
$d_i$: Download rate of the $i$-th peer
$F$: Size of the file being distributed (in bits)
$N$: Number of peers wanting to obtain a copy of the file
Distribution time: The time it takes for all $N$ peers to obtain a copy of the file

Assumptions for the analysis:

The Internet core has sufficient bandwidth (all bottlenecks occur at network access points)
Clients and servers are not participating in other network applications

Distribution Time Analysis for Client-Server Architecture

In a client-server architecture, no peer assists in distributing the file. To determine the distribution time $D_{cs}$, we can observe the following:

Server perspective: The server must transmit a copy of the file to each of the $N$ peers. Therefore, the server must transmit $NF$ bits. Since the server’s upload rate is $u_s$, the time to distribute the file is at least $NF/u_s$.
Peer perspective: Let $d_{min} = \min\{d_1, d_2, ..., d_N\}$. The peer with the lowest download rate cannot obtain all $F$ bits of the file in less than $F/d_{min}$ seconds.

Therefore, the minimum distribution time for the client-server architecture can be expressed as:

$$D_{cs} = \max \left\{ \frac{NF}{u_s}, \frac{F}{d_{min}} \right\}$$

The important point in this formula is that for sufficiently large $N$, the distribution time is given by $NF/u_s$. In other words, the distribution time increases linearly with the number of peers $N$. For example, if the number of peers increases a thousandfold from 1,000 to 1,000,000, the time required to distribute the file to all peers also increases a thousandfold.

Distribution Time Analysis for P2P Architecture

In a P2P architecture, each peer can help the server distribute the file. Once a peer receives some file data, it can use its own upload capacity to redistribute that data to other peers.

To derive the minimum distribution time $D_{P2P}$ for P2P architecture, we observe the following:

Server’s initial transmission: At the start of distribution, only the server has the file. For the file to reach the peer community, the server must send each bit of the file at least once. Therefore, the minimum distribution time is at least $F/u_s$.
Lowest download rate constraint: As with the client-server architecture, the peer with the lowest download rate cannot receive the file in less than $F/d_{min}$ seconds.
Total upload capacity constraint: The system’s total upload capacity is the sum of the upload rates of the server and all peers:
$$u_{total} = u_s + u_1 + \cdots + u_N$$
Since the system must deliver $F$ bits to each of the $N$ peers, the minimum distribution time is at least:
$$\frac{NF}{u_s + \sum_{i=1}^{N} u_i}$$

Combining these observations, the minimum distribution time for P2P architecture can be expressed as follows (assuming each peer can redistribute a bit as soon as it is received):

$$D_{P2P} = \max \left\{ \frac{F}{u_s}, \frac{F}{d_{min}}, \frac{NF}{u_s + \sum_{i=1}^{N} u_i} \right\}$$

Proving P2P Self-Scalability

Assuming all peers have the same upload rate $u$:

$$D_{P2P} = \max \left\{ \frac{F}{u_s}, \frac{F}{d_{min}}, \frac{NF}{u_s + Nu} \right\}$$

When $N$ is sufficiently large, the third term dominates:

$$D_{P2P} \approx \frac{NF}{u_s + Nu} = \frac{F}{u_s/N + u}$$

As $N$ increases, $u_s/N$ approaches 0, so:

$$\lim_{N \to \infty} D_{P2P} = \frac{F}{u}$$

Remarkably, in P2P architecture, no matter how much the number of peers increases, the distribution time converges to a constant value. This is precisely the self-scalability of P2P architecture. It works because each peer simultaneously acts as both a consumer and a redistributor of bits.

BitTorrent: The Most Successful P2P Protocol

BitTorrent is a P2P protocol for file distribution conceived by Bram Cohen in 2001 and first released in 2002. As of 2025, it remains the most widely used P2P file-sharing protocol, with millions of peers actively sharing files across hundreds of thousands of torrents simultaneously.

BitTorrent Terminology

To understand BitTorrent, you first need to know a few terms. A torrent refers to the collection of all peers participating in the distribution of a particular file. Files are divided into small pieces called chunks (historically 256KB, though modern clients commonly use 1-4MB pieces), for transmission. A tracker is an infrastructure node that keeps track of peers participating in a torrent. A peer that has the complete file is called a seeder, while a peer that has only part of the file is called a leecher.

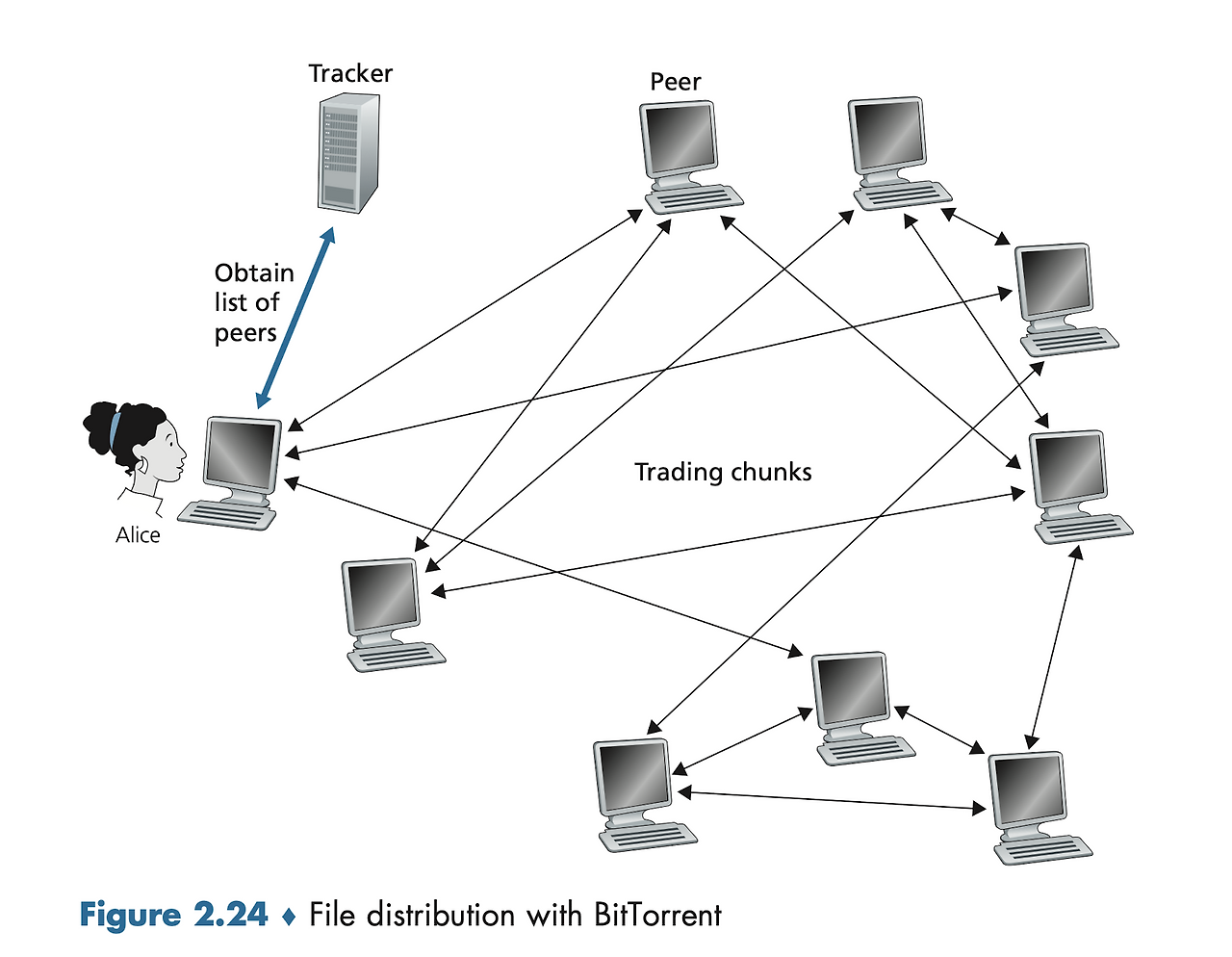

How BitTorrent Works

1. Joining a Torrent and Peer Discovery

When a new peer joins a torrent, it goes through an interesting process. Suppose a peer named Alice wants to join a torrent. First, Alice registers herself with the tracker. The tracker then randomly selects 50 peers from those currently participating and sends their IP addresses to Alice. Alice uses these IP addresses to establish TCP connections with the peers, and the successfully connected peers become Alice’s “neighboring peers.” Over time, some peers leave and new ones join, causing the neighbor composition to change dynamically.

2. Chunk Selection Strategy: Rarest First

One of BitTorrent’s key ideas is its chunk selection strategy. Alice periodically asks her neighboring peers for the list of chunks they hold. When deciding which chunk to request first, she uses the “rarest first” strategy – identifying which chunks among those she does not have are the least replicated among her neighbors and requesting those chunks first.

This strategy is clever because as rare chunks are rapidly redistributed, the number of copies of each chunk across the torrent becomes more evenly distributed, ultimately improving file availability. If every peer downloaded the most common chunks first, a situation could arise where a complete file becomes unobtainable if the seeder holding the rare chunks leaves.

3. Peer Selection Strategy: Tit-for-Tat

Another reason for BitTorrent’s success is the Tit-for-Tat (TFT) algorithm, which ensures fair exchange. The basic principle is simple: give priority to peers that provide data at the fastest rate.

Specifically, each peer measures the download rate from its neighbors every 10 seconds and selects the 4 fastest peers. These are set to the unchoked state, and chunks are uploaded to them. An interesting aspect is optimistic unchoking, which runs every 30 seconds. One additional peer is randomly selected and sent chunks, providing new peers an opportunity to participate in the network and opening the possibility of discovering better trading partners. The remaining peers are placed in a choked state and do not receive uploads.

This mechanism is elegant because peers with similar upload capabilities naturally find and trade with each other, effectively preventing free-riding while still giving new peers an opportunity to participate.

Additional Optimization Techniques in BitTorrent

Beyond its core mechanisms, BitTorrent employs several techniques to further improve performance. Pipelining processes multiple chunk requests simultaneously to reduce wait times. The first few chunks use a random first selection approach to start downloads quickly. When a download is nearly complete, endgame mode is activated, requesting the last few chunks from multiple peers simultaneously to shorten completion time. Additionally, an anti-snubbing mechanism automatically replaces peers that have been unresponsive for extended periods.

Closing Thoughts

P2P technology has permeated every corner of our daily lives. Beyond OS updates and large game patches, it has become the core infrastructure for blockchain and cryptocurrency. In live streaming services, CDN costs are an enormous burden, and in practice, many streaming platforms have adopted P2P CDN to efficiently utilize network bandwidth. The P2P characteristic where streaming quality actually improves as viewership increases is particularly useful for large-scale live event broadcasts. P2P-assisted CDN delivery is actively used in production live streaming services today to reduce origin server load and edge bandwidth costs, with providers like Peer5, Streamroot (now Lumen), and others enabling hybrid architectures that seamlessly fall back to traditional CDN when peer availability is low. This hybrid approach can yield significant cost savings – often reducing CDN bandwidth consumption by 60-80% during peak concurrent viewership events.

In an era where the limitations of centralized systems are becoming increasingly clear, the decentralized paradigm that P2P offers will only grow in importance. It is exciting to think about what role P2P technology will play in edge computing, Web 3.0, and the internet infrastructure of the future.
